Brand

MADELA

Sliding Door

Feel the fresh air fully and evoke a sunny day with a light breeze. It's all there with MADELA Sliding Door that has both function and performance.

Landed House
Apartment

Price Range : For Middle Up Class

Brand Video

Overview

Sliding door offers a lot of benefits such as letting natural light in, great airflow and circulation, ease to open and close, and better view.
MADELA Sliding Door has slim stile with sufficient strength that allows you enjoy your comfort and view, maximizing the space

Basic Performance

Structural (Wind Load)

Wind pressure resistant
up to 1200Pa (MADELA-H)
up to 600Pa (MADELA-L)
Water Tightness

Watertight from outside
up to 200Pa (MADELA-H)
up to 100Pa (MADELA-L)
Sound Insulation

Provide quiet living atmosphere -25 dB

Features

Anti-Lift Device

The anti-lift device is set standard for both inner/outer shutters to prevent the shutters from falling out of position

Safety Cap for Interlocking Stile

Prevents injuries caused by accidents during cleaning and normal use

Easy to Use

Crescent with lock knob and Hook Lock with flat design are both easy to use

Smooth Sliding and Highly Durable Roller

Rollers can be replaced without dismantling the shutters. After 10,000 times of opening and closing, there were no disorders for operation

Compatible with Thin Walls

Since it is screwed with the core of the wall, the wall will not break. Clean fit with nonvisible screws or caps

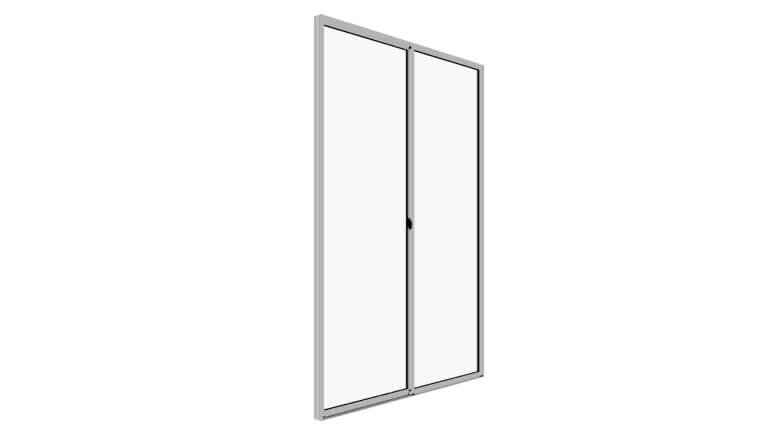

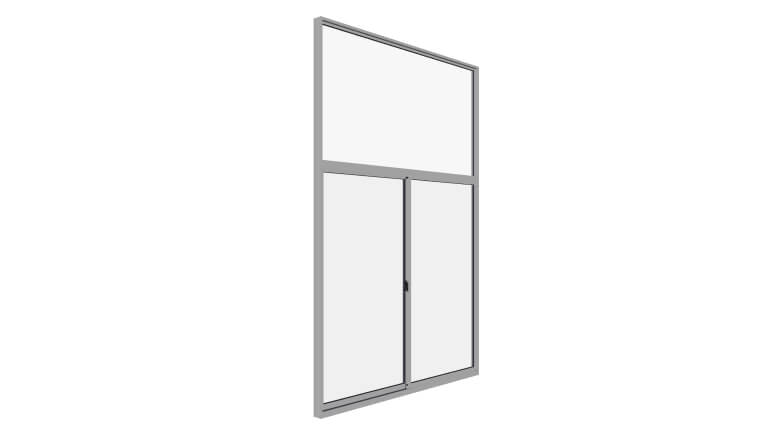

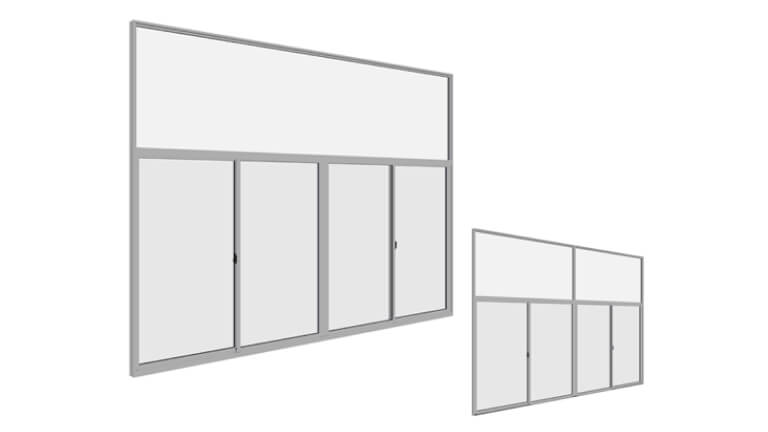

Variation

Item Variation

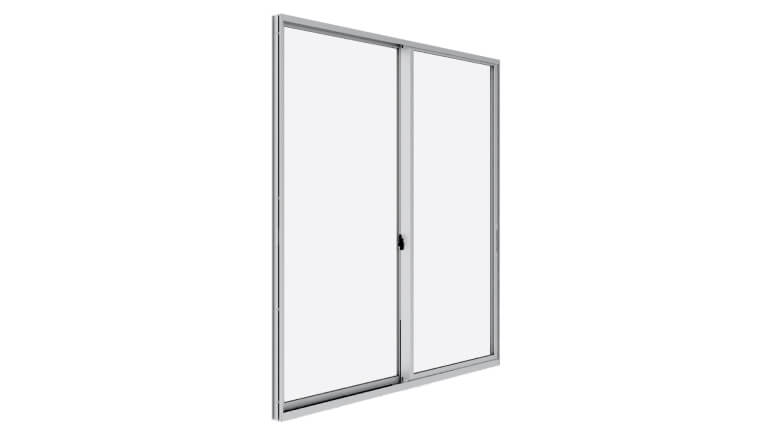

Sliding 2 Leaves

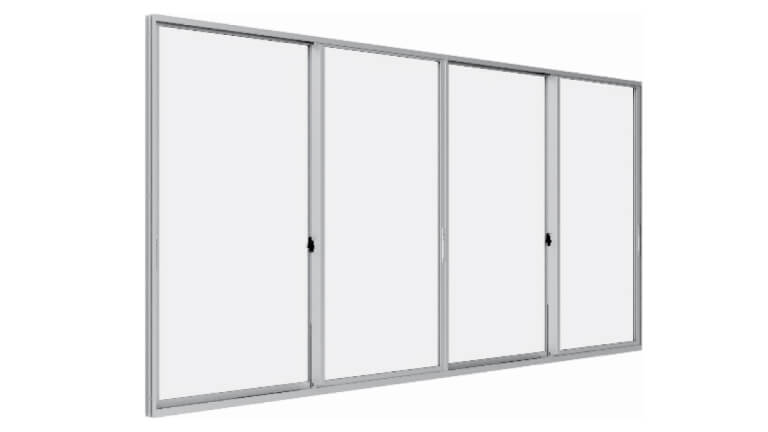

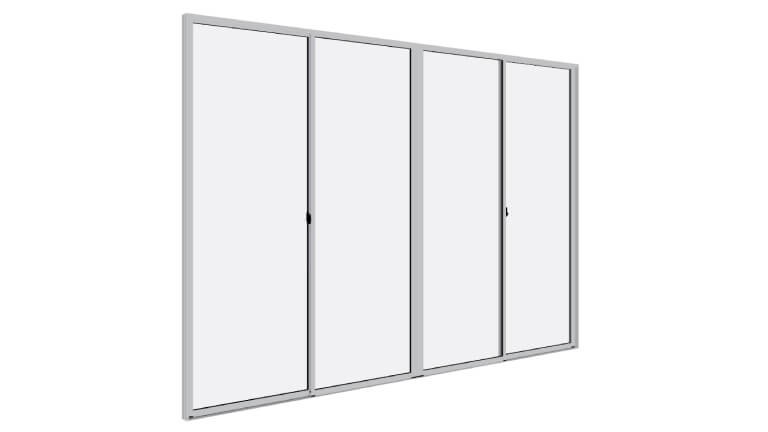

Sliding 4 Leaves

Color Variation

YKK AP products are available in a variety of finishes and colors.

* Color may vary from the original, please kindly check the actual color sample.

Finishing Color

We have three type of surface coating, Anodize, Anodize Plus and Powder Coating.
General Anodize is normal type of anodized color as most popular method in Indonesia.
Anodize Plus is our special technical method, and its durability and appearance are much better than other anodized method. Powder coating can be used for various colors.

Anodized: Anodized (General anodizing with sealing)

Anodized Plus (YKK AP Special Coating)
(anodizing with Electro Deposition)
Powder Coating: Powder Coating (Thickness minimum powder coating 50 μm)

Color Variation (Standard Colors)

Standard colors are our recommended colors. We have decided these colors based on our experience, and they can easily match with any color coordinate.

Finishing Color	White / Ivory	Light Gray / Champagne	Deep Gray	Brown	Black
Anodized Plus Fitting for Exterior Resistant to rain and UV
Powder Coating Fitting for Interior Re-paint OK

* Color may vary from the original, please kindly check the actual color sample

Lead Time Production

Standard colors have advantage in delivery time.

*Delivery times vary by region as the above does not include delivery.
*This lead time is from producing at AP until delivering to AP distributors.
Please contact each distributor for the final delivery time.

Standard Colors
Performance Goods	38-45 days

Other Colors
Performance Goods	46 days ~

New Colors
Performance Goods	46 days ~

	Standard Colors	Other Colors	New Colors
Performance Goods	38-45 days	46 days ~

Repairing Tools

Touch Up Spray

It can be used to repair scratches on surfaces quickly.
Touch Up Pen

Quick-dry and easy-to-use pen type, especially for repairing scratched surfaces.

MADELA Leaflet

Further detailed features and specifications are provided in the leaflet/catalog. Please use this for downloading and considering the introduction of the product.

Web Catalog

Contact Us

We will propose the most suitable products according to the request. Please feel free to contact us for details.

Detailed Specifications and Data
Product Price and Quote
Confirmation of Delivery Date
Proposal of Optional Parts

Information for Distributors

Scope of Work

Supply form : Processed Goods (Delivered in Knockdown System)

Scope	Material Production	Parts	Processing Assembling	Delivery	Installation	Site Management	Inspection	After Service
YKK AP Indonesia			Processing	Deliver to Distributors				Except AP matter : Paid by the cause of the matter
Distributors			Assembling	Deliver to Site				Dispatch Request Form
