Brand

NEXSTA

Folding Door

By Using NEXSTA Folding Door, Let's Create Your Comfort with Wide Opening by Unifying of Indoor and Outdoor

Landed House
Apartment
Commercial

Price Range : For Luxury Class

Overview

Folding door allows a large opening and wider view.
Discover the spacious and airy feeling by unifying indoor and outdoor space.
Our NEXSTA Folding Door has both safety and high operability and has a lot of leaves and opening variation.

Basic Performance

Structural (Wind Load)

1600 Pa Deflection L/125 and L/175
Water Tightness

350 Pa
Air Infiltration

Grade A-4 (JIS)
Sound Insulation

T-1 (-25 dB) (JIS)
T-2 (-30 dB) (JIS)
Rw 24 - 30 (ISO)
Double Glazing

Max 6 + A6 + 6 mm
Glass Groove:26 mm

Features

Slim Frame and Panels Design

Slim design handle and flat design frame

Weather-Strip & Multipoint Lock

Weather-strip is provided to ensure air infiltration and finger safety. The multipoint lock on top and bottom with one stroke ensure for your home security

High-Strength Inner Frame Setting

Support large opening, support anti typhoon strength

Hanger Roller

Ensure the smoothness and durability against heavy duty

Weep Hole

It will not be soaking wet and block the drainage because of the weep hole

Variation

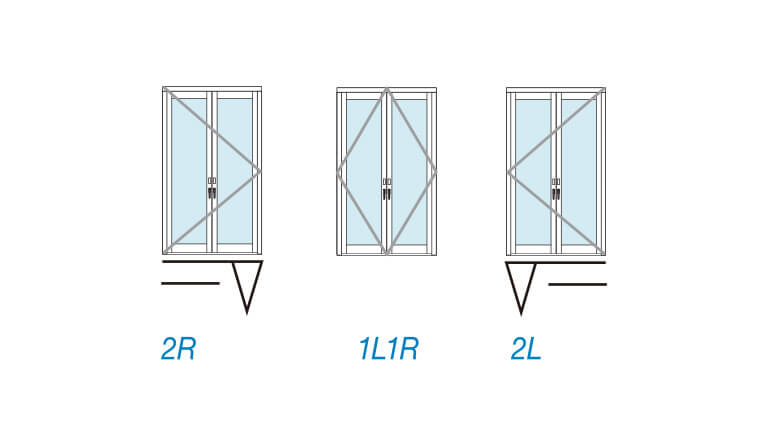

Folding Door 2 Leaves

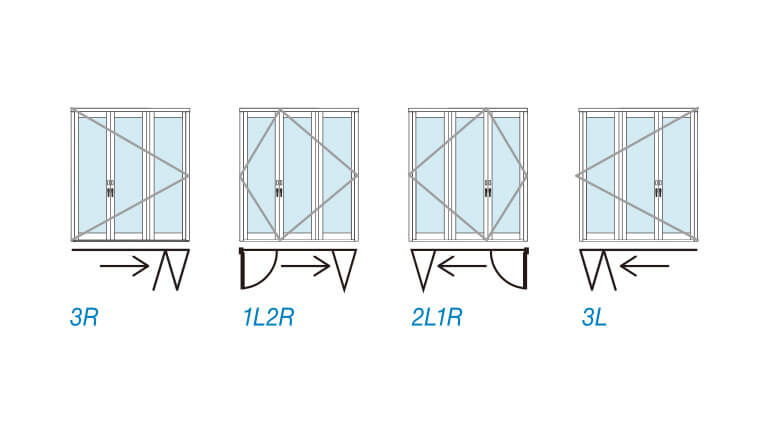

Folding Door 3 Leaves

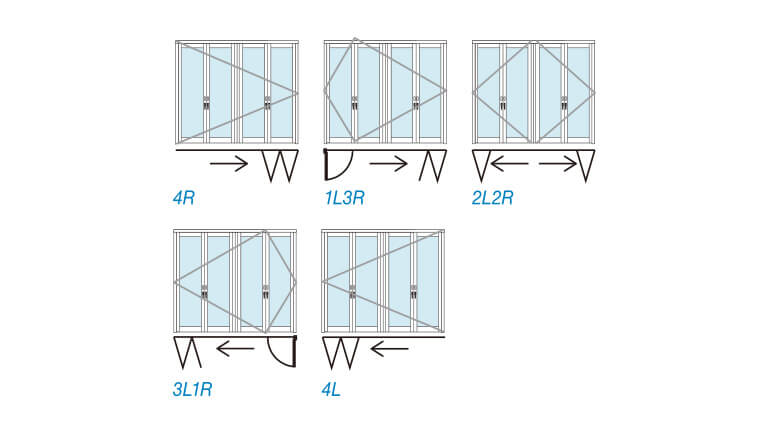

Folding Door 4 Leaves

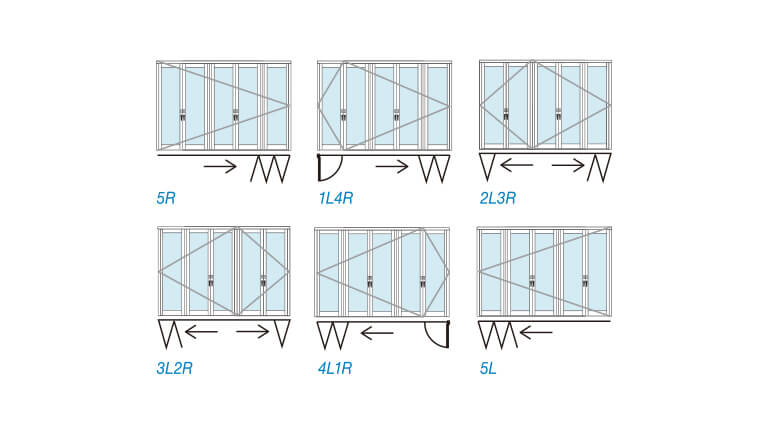

Folding Door 5 Leaves

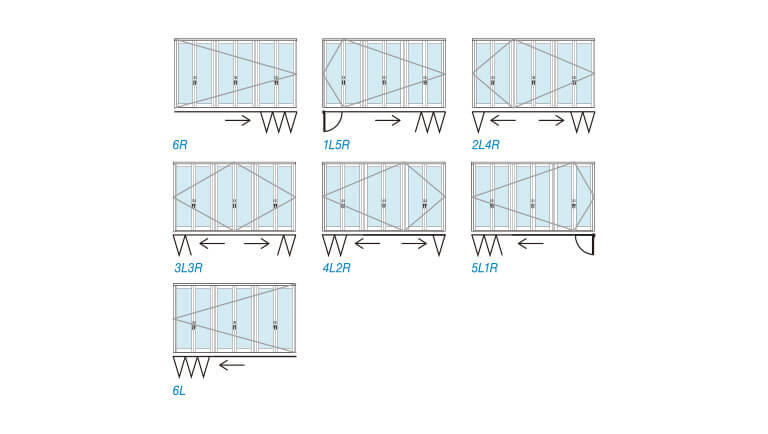

Folding Door 6 Leaves

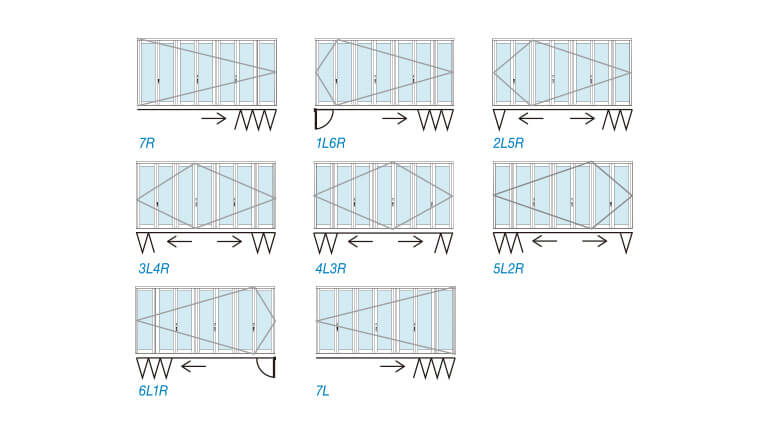

Folding Door 7 Leaves

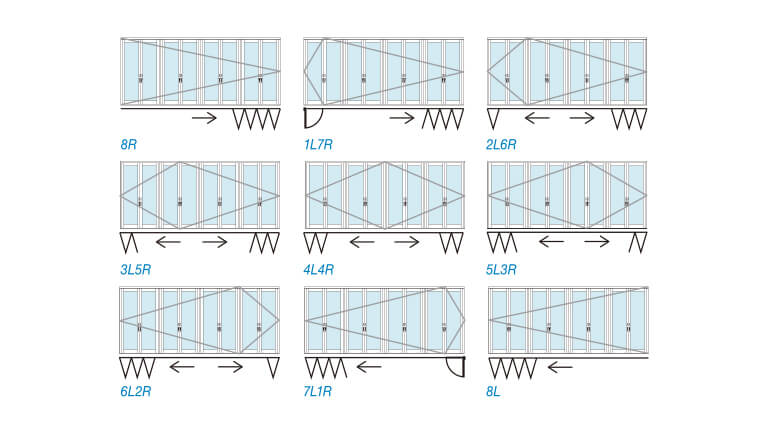

Folding Door 8 Leaves

Color Variation

YKK AP products are available in variety of finishes and colors.

* Color may vary from the original, please kindly check the actual color sample.

Finishing Color

We have three type of surface coating, Anodize, Anodize Plus and Powder Coating.
General Anodize is normal type of anodized color as most popular method in Indonesia.
Anodize Plus is our special technical method, and its durability and appearance are much better than other anodized method. Powder coating can be used for various colors.

Anodized: Anodized (General anodizing with sealing)

Anodized Plus (YKK AP Special Coating)
(anodizing with Electro Deposition)
Powder Coating: Powder Coating (Thickness minimum powder coating 50 μm)

Color Variation (Standard Colors)

Standard colors are our recommended colors. We have decided these colors based on our experience, and they can easily match with any color coordinate.

Finishing Color	White / Ivory	Light Gray / Champagne	Deep Gray	Brown	Black
Anodized Plus Fitting for Exterior Resistant to rain and UV
Powder Coating Fitting for Interior Re-paint OK

* Color may vary from the original, please kindly check the actual color sample

Lead Time Production

Standard colors have advantage in delivery time.

*Delivery times vary by region as the above does not include delivery.
*This lead time is from producing at AP until delivering to AP distributors.
Please contact each distributor for the final delivery time.

Standard Colors
Performance Goods	38-45 days

Other Colors
Performance Goods	46 days ~

New Colors
Performance Goods	46 days ~

	Standard Colors	Other Colors	New Colors
Performance Goods	38-45 days	46 days ~

Repairing Tools

Touch Up Spray

It can be used to repair scratches on surfaces quickly.
Touch Up Pen

Quick-dry and easy-to-use pen type, especially for repairing scratched surfaces.

Accessories

Standard Parts

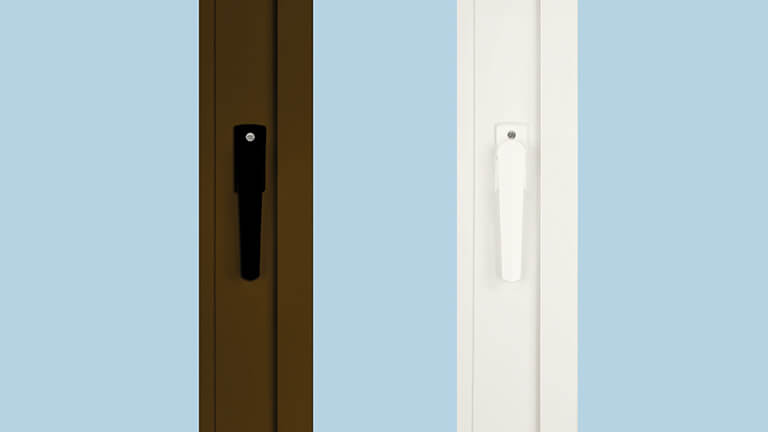

Cremorne Handle

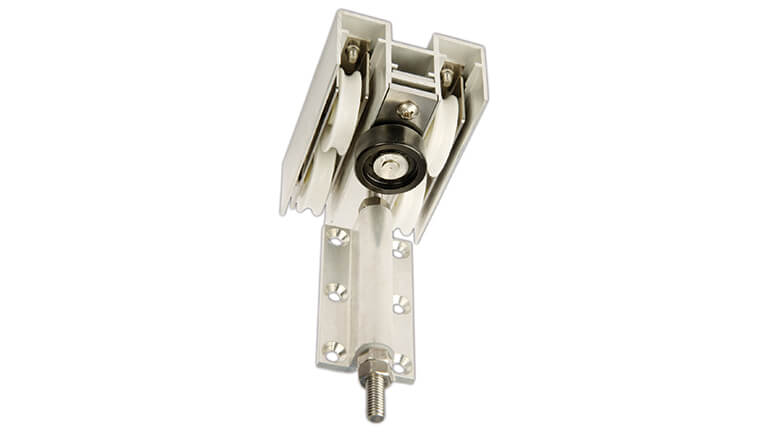

Hanger Roller

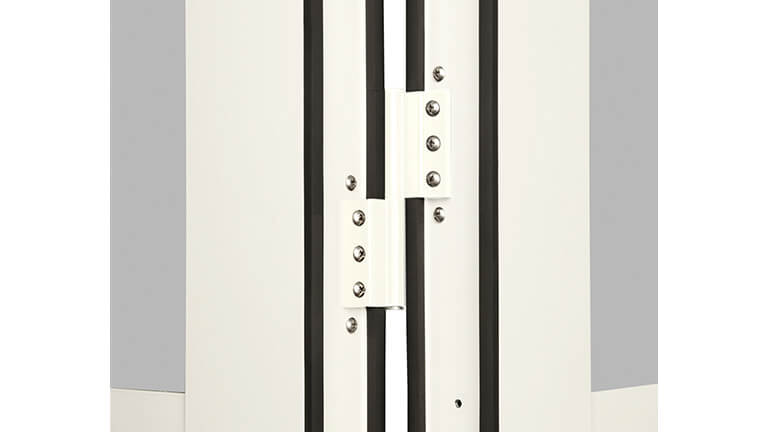

Hinge

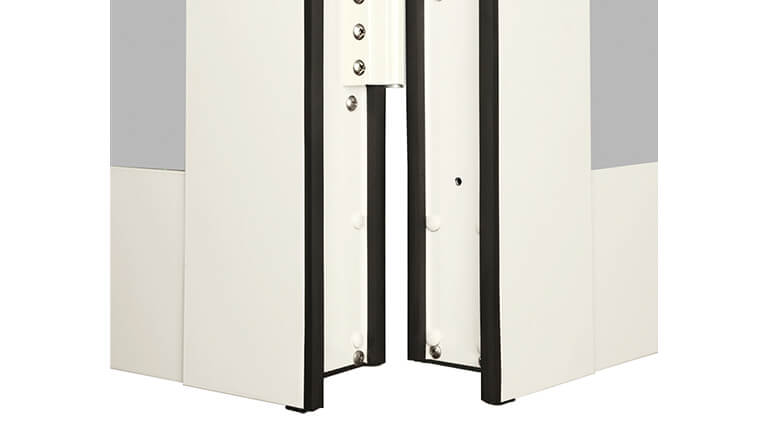

Safety Rubber

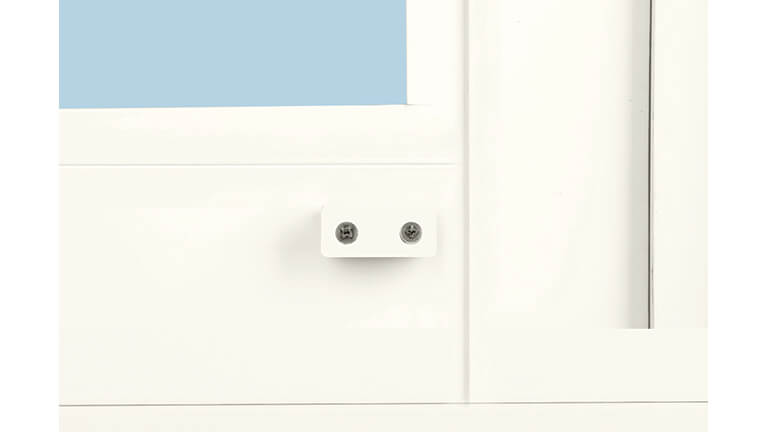

Inner Stopper

Optional Parts

Cylinder and Cremorne Handle

NEXSTA Lineup Catalog

Further detailed features and specifications are provided in the catalog. Please use this for downloading and considering the introduction of the system.
