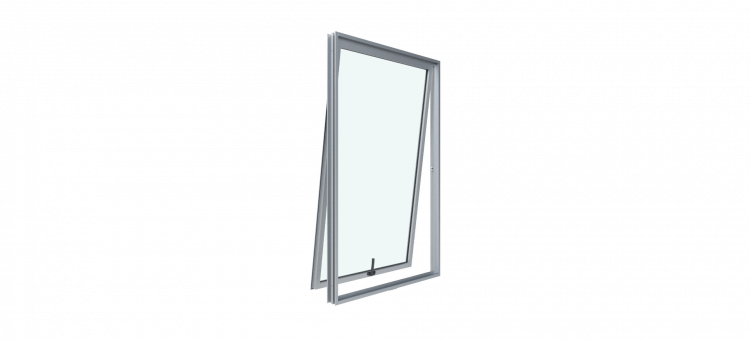

Top Hung

Enjoy the fresh air with NEXSTA Top Hung without compromising your comfort and privacy.

Landed House
Apartment
Commercial

Price Range : For Luxury Class

Overview

Top Hung can provide natural light, good ventilation and can protect your home against moisture. One of NEXSTA Top Hung's strength is high durability as it uses durable YKK AP parts. And for NEXSTA 70LS, large opening of 3000mm is available.

Basic Performance

Structural (Wind Load)

1600 Pa Deflection L/125
Water Tightness

350 Pa
Sound Insulation

T-1 (-25 dB) (JIS)
T-2 (-30 dB) (JIS)
Rw 24 - 30 (ISO)
Air Infiltration

Grade A-4 (JIS)
Double Glazing

Max 6 + A6 + 6 mm
Glass Groove :14, 24, and 26 mm

Features

Arm Stopper

When the window is open wide, the stopper is set up to prevent the window from flapping by strong wind

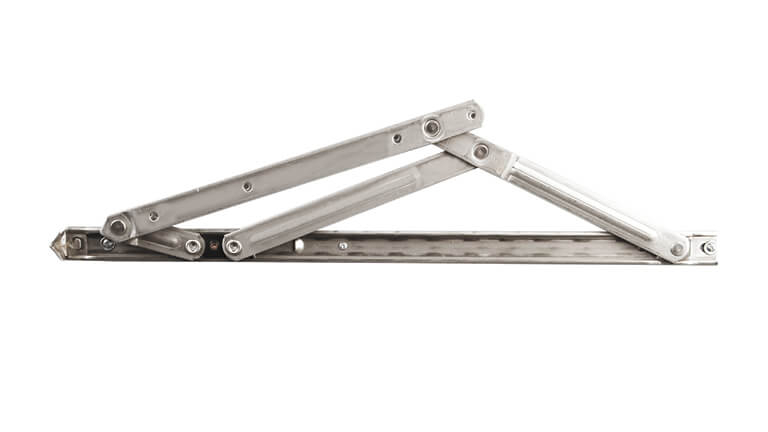

Friction Stay

Friction stay is set as standard for safety

6 Step Arm Stopper A & B Type (Option)

Enable to adjust the opening angle until 6 levels to control the air flowing

Variation

Color Variation

YKK AP products are available in variety of finishes and colors.

* Color may vary from the original, please kindly check the actual color sample.

Finishing Color

We have three type of surface coating, Anodize, Anodize Plus and Powder Coating.
General Anodize is normal type of anodized color as most popular method in Indonesia.
Anodize Plus is our special technical method, and its durability and appearance are much better than other anodized method. Powder coating can be used for various colors.

Anodized: Anodized (General anodizing with sealing)

Anodized Plus (YKK AP Special Coating)
(anodizing with Electro Deposition)
Powder Coating: Powder Coating (Thickness minimum powder coating 50 μm)

Color Variation (Standard Colors)

Standard colors are our recommended colors. We have decided these colors based on our experience, and they can easily match with any color coordinate.

Finishing Color	White / Ivory	Light Gray / Champagne	Deep Gray	Brown	Black
Anodized Plus Fitting for Exterior Resistant to rain and UV
Powder Coating Fitting for Interior Re-paint OK

* Color may vary from the original, please kindly check the actual color sample

Lead Time Production

Standard colors have advantage in delivery time.

*Delivery times vary by region as the above does not include delivery.
*This lead time is from producing at AP until delivering to AP distributors.
Please contact each distributor for the final delivery time.

Standard Colors
Performance Goods	38-45 days

Other Colors
Performance Goods	46 days ~

New Colors
Performance Goods	46 days ~

	Standard Colors	Other Colors	New Colors
Performance Goods	38-45 days	46 days ~

Repairing Tools

Touch Up Spray

It can be used to repair scratches on surfaces quickly.
Touch Up Pen

Quick-dry and easy-to-use pen type, especially for repairing scratched surfaces.

Accessories

Standard Parts

Cam Latch Handle - A & B Type

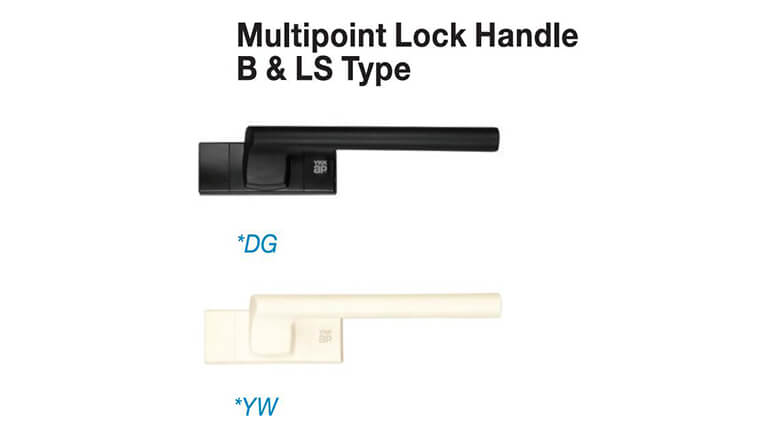

Multipoint Lock Handle - B & LS Type

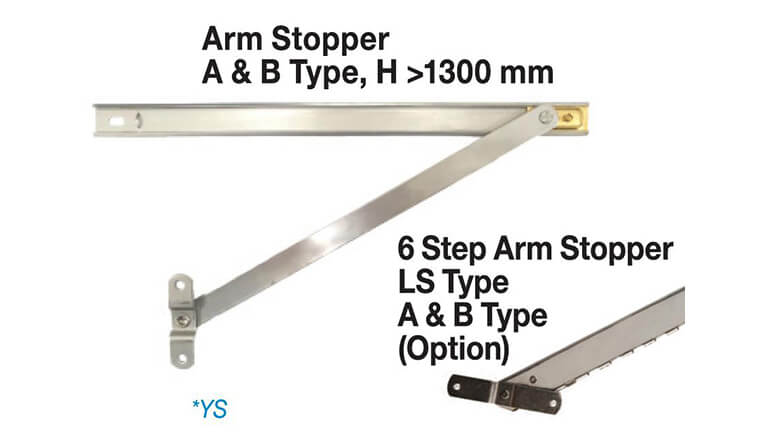

Arm Stopper - A & B Type

Friction Stay - A & B Type

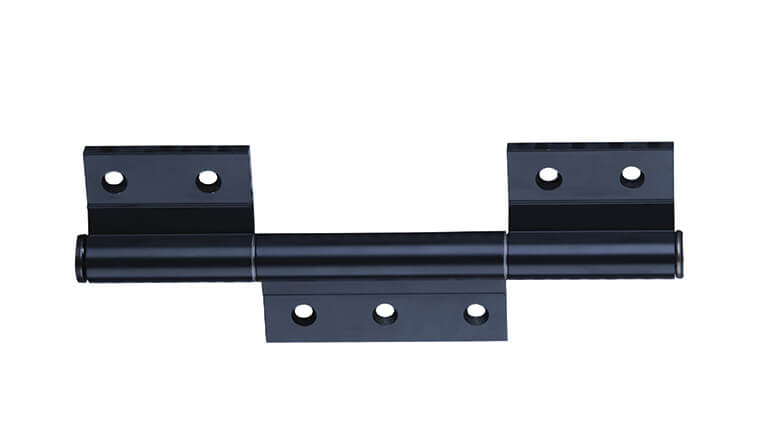

Butt Hinge [Aluminum] LS Type

Optional Parts

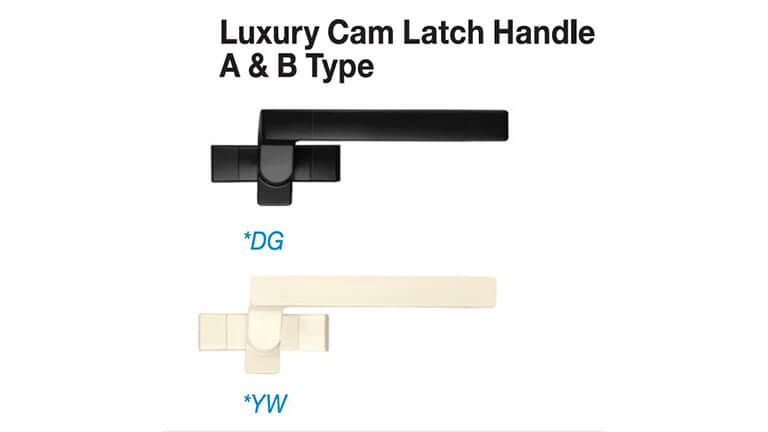

Luxury Cam Latch Handle - A & B Type

Luxury Multipoint Lock Handle - B & LS Type

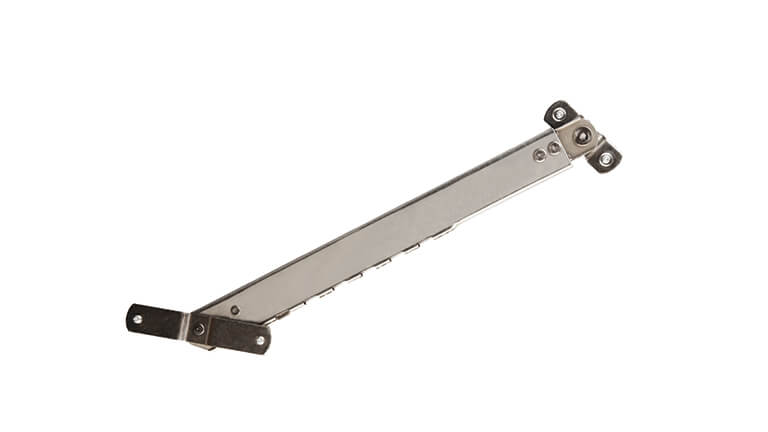

6 Step Arm Stopper - LS Type A & B Type

NEXSTA Lineup Catalog

Further detailed features and specifications are provided in the catalog. Please use this for downloading and considering the introduction of the system.
